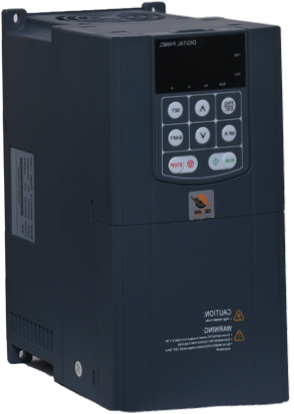

DV203 series is our high reliable, small size and high cost performance product , which supports high performance drive of three phase asynchronous motor, international leading vector control technology, common V/F control mode, supports speed and torque control output mode.
Special emphasis: In order to ensure the performance of the product, please confirm the setting of the motor nameplate parameters: rated voltage, rated current, rated power, rated frequency, rated speed, the number of poles and other motor parameters when using the product for the first time
|
DV203 series product type and technical data Product Model |
Input Current |
Output Current |
Power supply capacity |
Adapted motor |
|
|||||
|
A |
A |
KVA |
kW |
Brake Unit |
|
|||||
|
220V voltage level series products |
|
|||||||||
|
DV203-2S02P8B |
5.4 |
2.3 |
1.4 |
0.4 |
Built-in optional |
|
||||
|
DV203-2S04P8B |
8.2 |
4 |
2.2 |
0.75 |
Built-in optional |
|
||||
|
DV203-2S0008B |
14.0 |
7 |
3.7 |
1.5 |
Built-in optional |
|
||||
|
DV203-2S0010B |
25.0 |
9.6 |
5.5 |
2.2 |
Built-in optional |
|
||||
|
DV203-2S0013B |
29.0 |
13 |
7.1 |
3.0 |
Built-in optional |
|
||||
|
DV203-2S0017B |
35 |
17 |
8.5 |
4.0 |
Built-in optional |
|
||||
|
DV203-2T0025B |
34 |
25 |
9 |
5.5 |
Built-in |
|
||||
|
DV203-2T0032B |
43 |
32 |
11 |
7.5 |
Built-in |
|
||||
|
DV203-2T0037B |
50 |
37 |
14 |
9 |
Built-in |
|
||||
|
DV203-2T0045B |
58 |
45 |
17 |
11 |
Built-in |
|
||||
|
DV203-2T0060B |
78 |
60 |
21 |
15 |
Built-in |
|
||||
|
DV203-2T0075B |
95 |
75 |
24 |
18.5 |
Built-in |
|
||||
|
DV203-2T0090B |
112 |
90 |
30 |
22 |
Built-in optional |
|||||
|
DV203-2T0110B |
142 |
110 |
42 |
30 |
Built-in optional |
|||||
|
380V voltage level series products |
||||||||||
|
DV203-4T01P5B* |
2 |
1.5 |
0.75 |
0.4 |
Built-in optional |
|||||
|
DV203-4T02P5B* |
2.8 |
2.1 |
1.5 |
0.75 |
Built-in optional |
|||||
|
DV203-4T04P2B* |
5 |
3.8 |
3 |
1.5 |
Built-in optional |
|||||
|
DV203-4T05P6B* |
6.7 |
5.1 |
4 |
2.2 |
Built-in optional |
|||||
|
DV203-4T09P4B* |
12 |
9.0 |
6 |
3.7 |
Built-in optional |
|||||
|
DV203-4T0013B* |
17.5 |
13 |
9 |
5.5 |
Built-in optional |
|||||
|
DV203-4T0017B |
22.8 |
17 |
11 |
7.5 |
Built-in |
|||||
|
DV203-4T0025B |
33.4 |
25 |
17 |
11.0 |
Built-in |
|||||
|
DV203-4T0032B |
42.8 |
32 |
21 |
15.0 |
Built-in |
|||||
|
DV203-4T0037B |
49.5 |
37 |
24 |
18.5 |
Built-in |
|||||
|
DV203-4T0045B |
59 |
45 |
30 |
22 |
Built-in |
|||||
|
DV203-4T0060B |
78.3 |
60 |
43 |
30 |
Built-in |
|||||
|
DV203-4T0075B |
97 |
75 |
63 |
37 |
Built-in |
|||||
|
DV203-4T0090B* |
117 |
91 |
81 |
45 |
Built-in optional |
|||||
|
DV203-4T0110B* |
144.5 |
112 |
97 |
55 |
Built-in optional |
|||||
|
Product Model |
Input Current |
Output Current |
Power supply capacity |
Adapted motor |
|
DV203-4T0304 |
320 |
304 |
263 |
160 |
|
DV203-4T0350 |
374 |
350 |
306 |
185 |
|
DV203-4T0380 |
383 |
380 |
334 |
200 |
|
DV203-4T0426 |
431 |
426 |
375 |
220 |
|
DV203-4T0465 |
480 |
465 |
404 |
250 |
|
DV203-4T0520 |
535 |
520 |
453 |
280 |
|
DV203-4T0590 |
575 |
590 |
517 |
315 |
|
DV203-4T0650 |
627 |
650 |
565 |
355 |
|
DV203-4T0725 |
697 |
725 |
629 |
400 |
